Web Aligner System

Web Aligner System
Web Aligner System
Send Inquiry
Product Code : WA 09
Brand Name : NEHA MACHINERY
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Web Aligner System

We are counted as a major manufacturer and supplier of Web Aligner System in the industry. This system contains non contact self-cleaning air flow sensor which is fitted with fine adjustment mounting bracket. For detecting the lateral winding of material, it is featured with differential air pressure. Our provided system works on hydraulic pressure as well as actuates the correcting frames. Furthermore, this Web Aligner System comes with an integral air generator for the sensor.

Key features:


  • Coupled with 3 Phase AC motor
  • Known for its high accuracy
  • Perfect for automatically guide all type of flexible materials

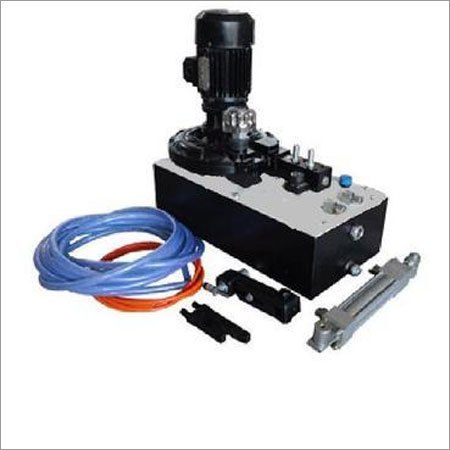

Electro - Hydro Web Aligner (Power Pack) Unit:
  • Speed of Unit 250/min
  • Variation of the film Winding is 0.5
  • M.S.Tank and M.S.Plate
  • Electronic of the film Photocell sensor for edge.
  • Electronic 0 - 5 HP AC Motor.
  • Electrical Panel Board for Operate the complete Unit.
  • Hydraulic Cylinder - Adjuster - Oil Pipe.

Technical Specifications for Power Pack Unit:
  • Motor rating (3 phase, 50 Hz) 0.5 HP
  • Pump flow rate 3.4 l/min
  • Tank capacity 17 liters
  • Oil type Castrol EP 32
  • Line pressure 14 bar
  • Max. Operation force (50.8 mm dia. Cylinder) 260kg
  • Follow-up speed --
  • Max. At 3.4 l/min 30mm/sec
  • At 5.8 l/min --
  • Air sensor air pressure 5 to 28 mbar, infinitely adj.
  • Weight including oil 40kg approx
Trade Information
  • FOB Port
  • Vadodara , Gujarat
  • Payment Terms
  • Others, Cheque, Cash in Advance (CID)
  • Supply Ability
  • 15 Per Day
  • Delivery Time
  • depends on order Week
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • standard packaging
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
